Auto Tyre Repair Machine Kit Car Tire Vulcanizer Patches Vulcanizing Machine, 220V Tyre Vulcanizing Patches Machine 140℃-165℃
Auto Tyre Repair Machine Kit Car Tire Vulcanizer Patches Vulcanizing Machine, 220V Tyre Vulcanizing Patches Machine 140℃-165℃
Couldn't load pickup availability
- ✅Simple, one-man operation. Repairs tread, shoulder and sidewall. Large-capacity, fully rotating C-frame accommodates different wheel sizes and allows for vertical or horizontal repairs
- ✅Vulcanizing repair process cures the patch and inner tire lining to form a dense, sealed repair job. Curing heads can be operated individually or simultaneously for maximum repair efficiency. Constant controlled heating elements maintain optimum temperature
- ✅An adjustable, swing-open, rotating C-frame cavity simplifies tire loading and unloading while maximizing stability
- ✅Adjustable height tower. Contoured inner and outer curing heads conform to a variety of tire profiles. Long-life Acme thread hand-wheel screw applies over 4,000-lbs. of pressure and heat for maximum adhesion of patch to casing
- ✅Lightweight, self-standing design offers portability and maximum stability. Doesn't require any time consuming tensioning straps. Handles long sidewall repairs. Cures both patch and plug at the same time

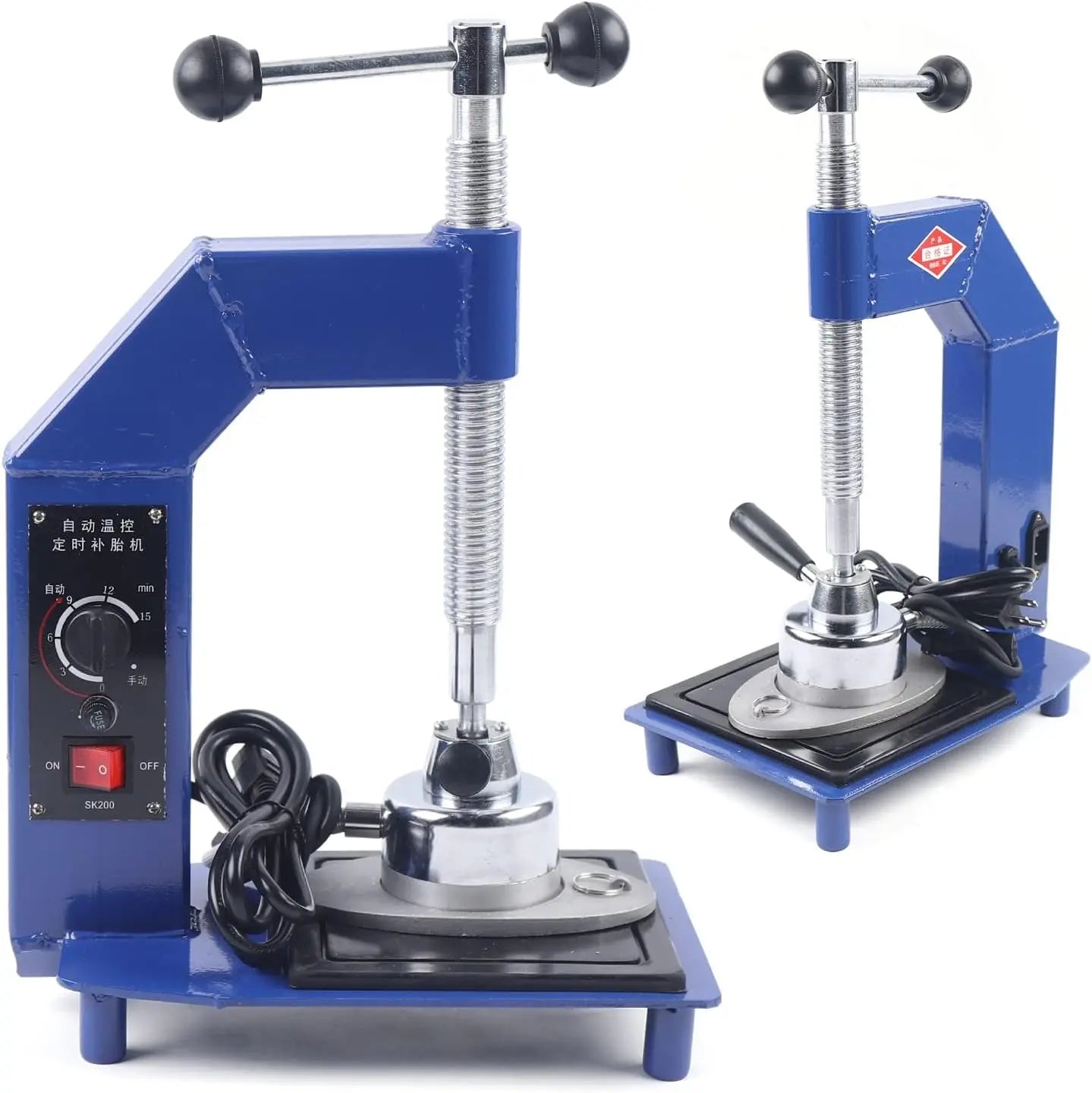

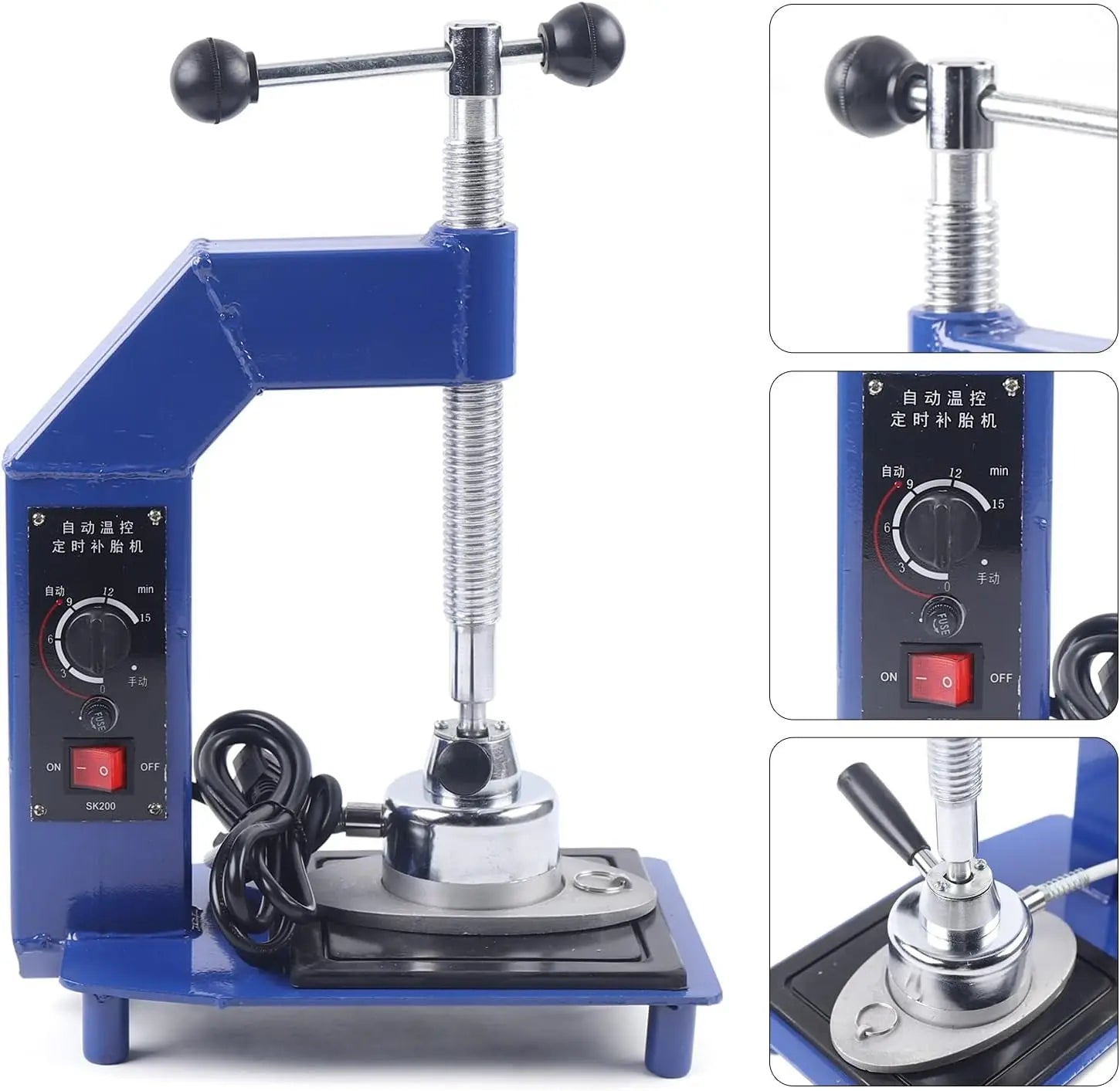

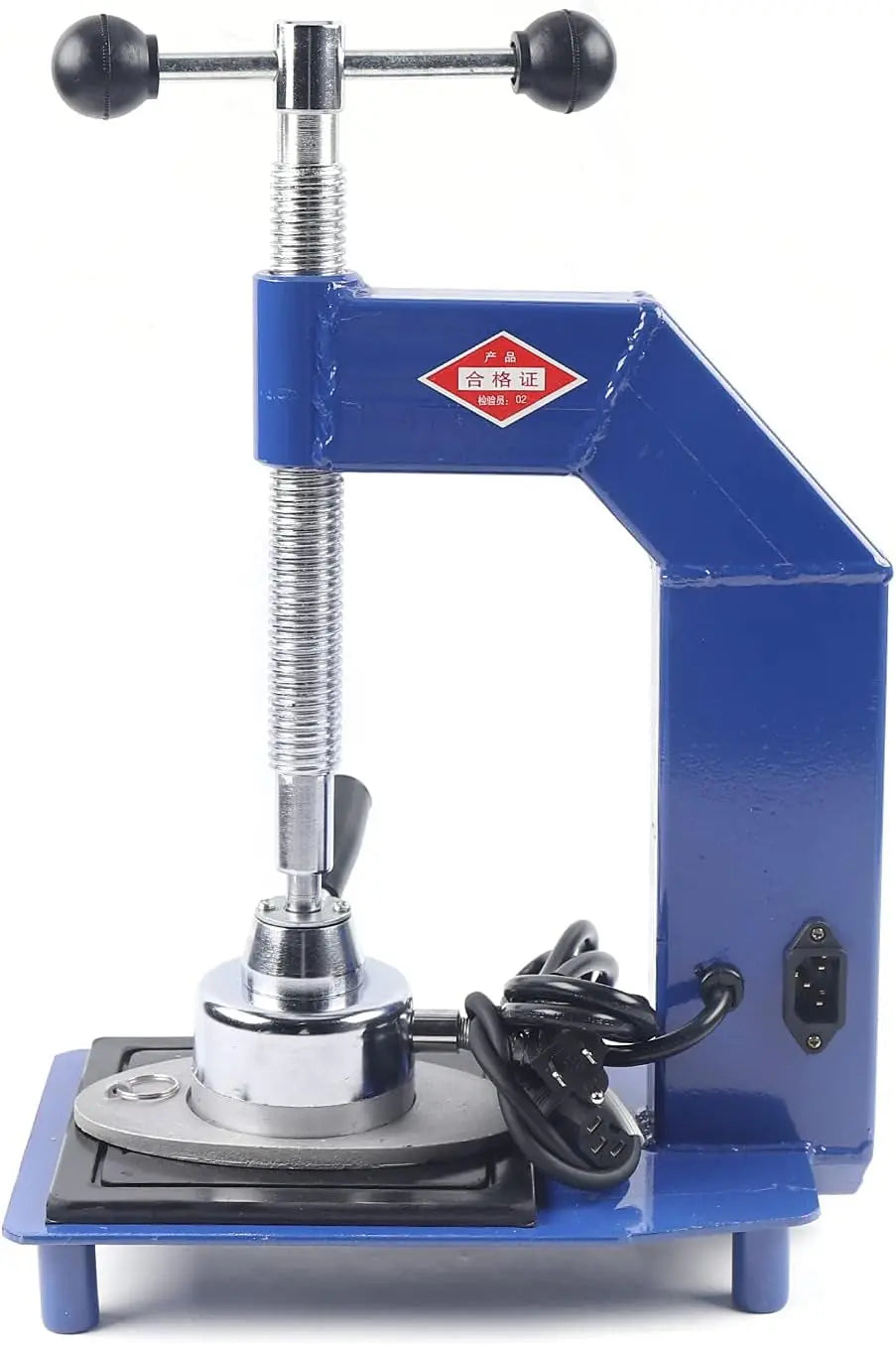

Auto Tyre Repairing Machine Vulcanizing Machine Tread Shoulder Sidewall 140-165℃
Product parameters:
Materail: Iron+Aluminum
Input Voltage :110V
Automatic temperature:140℃-165℃
Vulcanizing area:100*85mm2

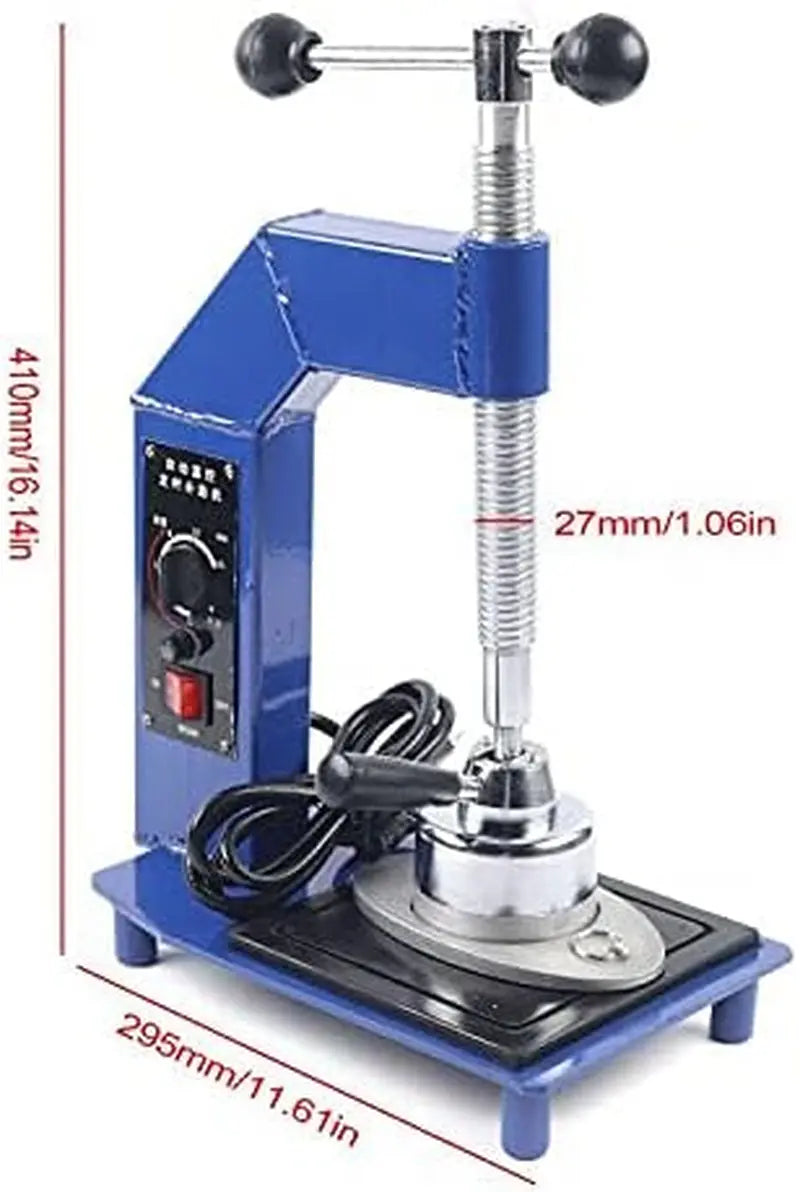

Length:295mm/11.61in
Height:410mm/16.14in
The diameter of the screw:27mm/1.06in
Weight:6.45kg/14.22lb
Tire repair method:
Clean the surface of the wound where the tire needs to be repaired and mark it.
Use a grinding machine to grind the surface of the wound, the area is slightly larger than the wound。
Use the brush to raw rubber and gasoline blending good mortar (or hot glue) evenly coated on the polished.。
Cut the appropriate size of the rubber, it will fill in the wound,

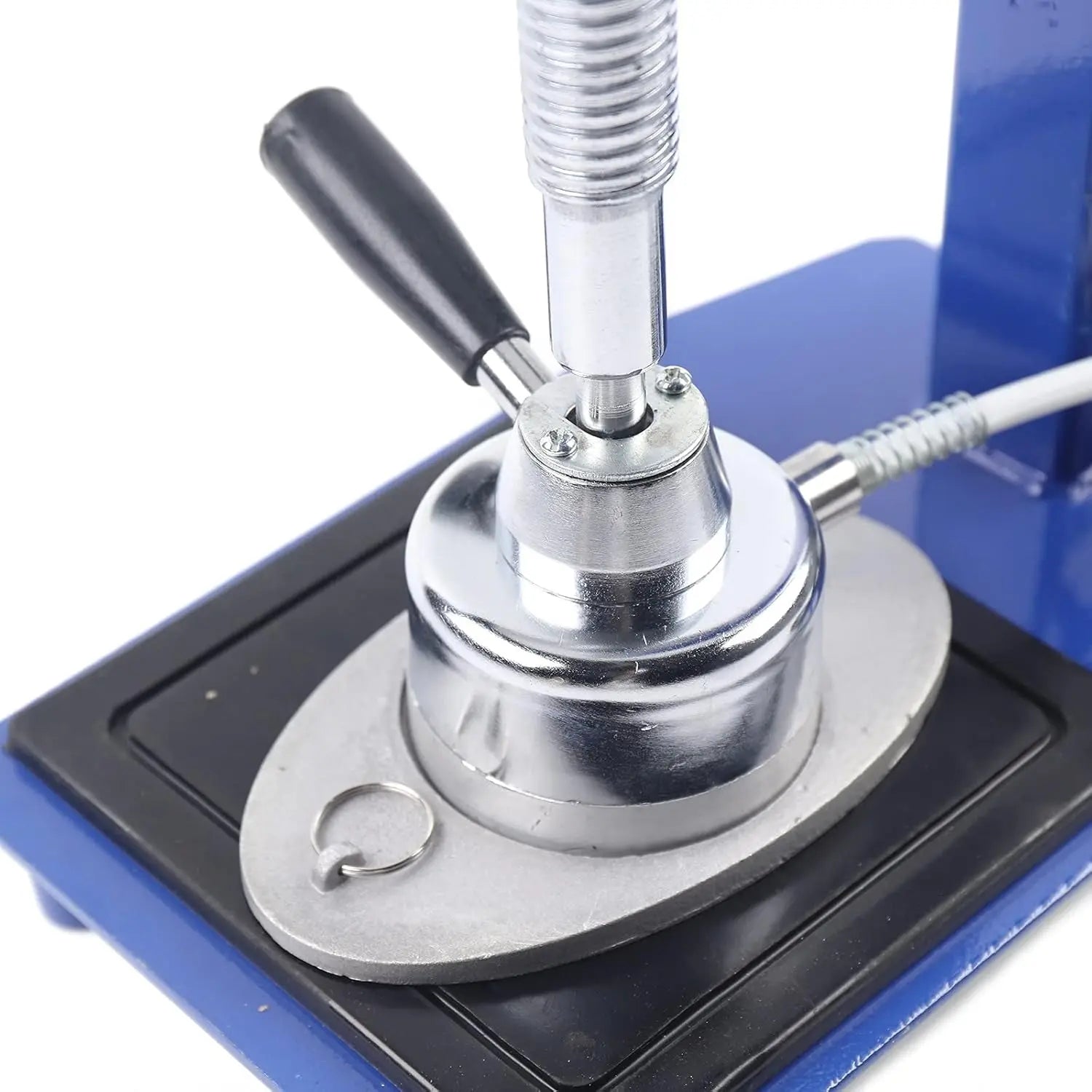

Pressure the hot head on raw rubber (if possible can pad a thin layer of aluminum or iron in the raw rubber), try to put the wound in the central heating head, pressing screw, fixed tires.

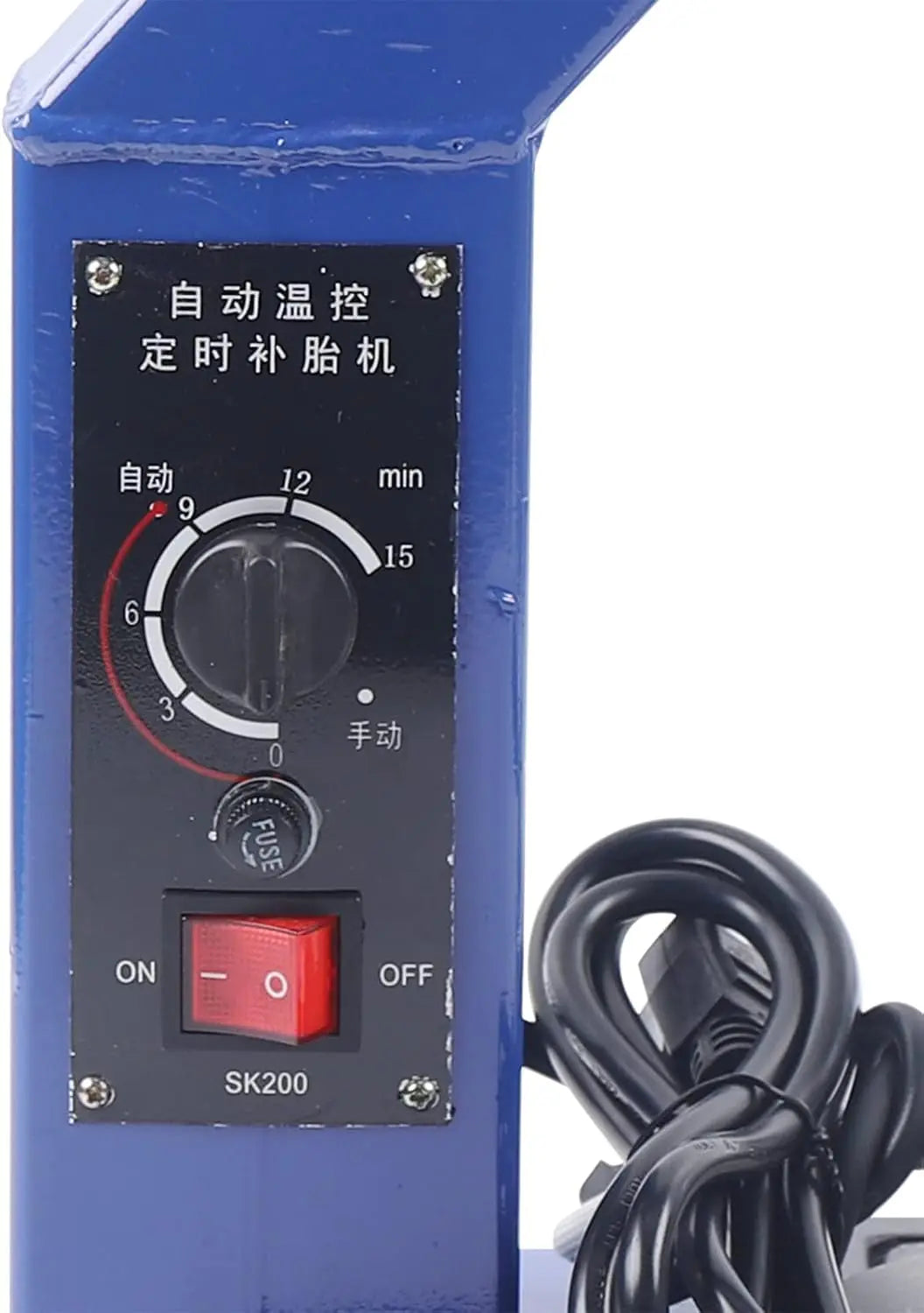

Turn on the timer switch and set it in the right place, Cold start can refer to "20" (Or adjust the vulcanizing time according to the temperature and the condition of the wound) the heat start time can be a little shorter，if you do not need timing can be set on the manual gear, then the hot head to work.
At the end of vulcanization, tire repair machine automatically cut off power supply hot head.
Packing list:
1xTire Repair Machine
